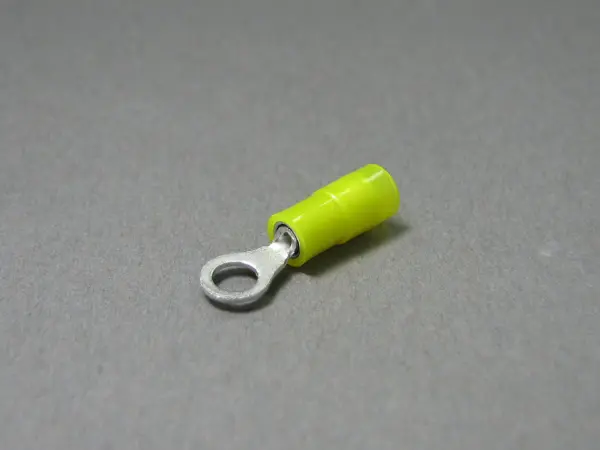

Insulated Ring Terminals, Flared, Extra Copper Sleeve

(TMDN 0.3-4-YCL)
20.09
Package Qty: 1000
Quantity:

Specifications
  • Stud: 8
  • AWG: 24-20
  • B: 6.6mm / 0.26"
  • L: 20.5mm / 0.81"
  • F: 7.2mm / 0.28"
  • øD: 2.9mm / 0.11"
  • ød2: 4.3mm / 0.17"
  • Wire Size Range for Stranded Wire (mm²): 0.20-0.50
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
  • Standards: -
  • RoHS: RoHS 10
  • H: 10mm / 0.39"
  • Standard Color: Yellow Translucent
  • Applicable Hand Tools: NH 5, NH 32
  • Material (Insulator): Nylon
  • Insulation Temperature: -40°F to 221°F / -40°C to 105°C
  • Rated Voltage: 300V
