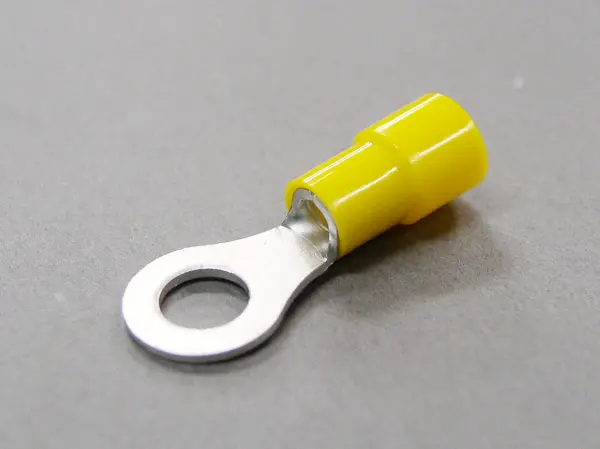

Eco-Friendly Polycarbonate Insulated Ring Terminals

(TMEX 5.5-6-YEL)
10.88
Package Qty: 50
Quantity:

Technical Resources
Features
  • Excellent for insulation with rated voltage of 600V
  • Temperature range: -40°F to +257°F (-40°C to +125°C)
  • Its polycarbonate material will not generate poisonous halogenic gas and /or corrosive gas when combusted.
  • RoHS SOC 10 Compliant
  • 2 standard colors available for each size: 1.24mm² (red & clear); 2mm² (blue & clear); 5.5mm² (yellow & clear)
Specifications
  • Stud: 1/4
  • AWG: 12-10
  • B: 6.4mm / 0.25"
  • L: 30.5mm / 1.2"
  • F: 10.5mm / 0.41"
  • øD: 6.8mm / 0.27"
  • ød2: 6.4mm / 0.25"
  • Wire Size Range for Stranded Wire (mm²): 2.63-6.64
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
  • Standards: UL, CSA, JIS
  • RoHS: RoHS 10
  • H: 14.0mm / 0.55"
  • Color: Yellow
  • Rated Voltage: 600V
  • Rated Temperature: -40°F to +257°F (-40°C to +125°C)
