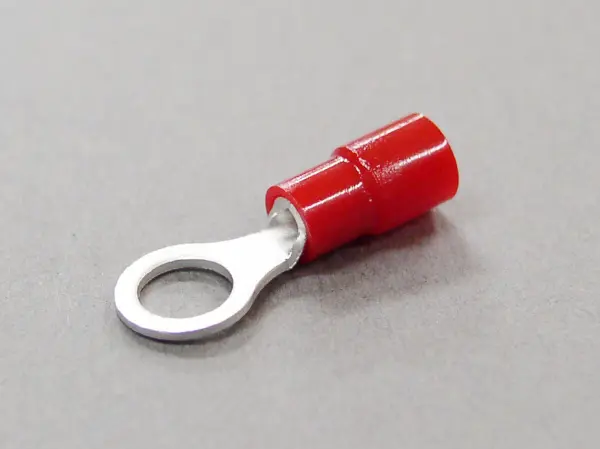

Eco-Friendly Polycarbonate Insulated Ring Terminals
(TMEX 1.25-5-RED)
11.3
Package Qty: 1000
Quantity:
Add to Quote
Technical Resources
About TMEX
Features
Excellent for insulation with rated voltage of 600V
Temperature range:
-40°F to +257°F (-40°C to +125°C)
Its polycarbonate material will not generate poisonous halogenic gas and /or corrosive gas when combusted.
RoHS SOC 10 Compliant
2 standard colors available for each size:
1.24mm² (red & clear); 2mm² (blue & clear); 5.5mm² (yellow & clear)
Specifications
Stud:
10
AWG:
22-16
B:
8mm / 0.31"
L:
21.1mm / 0.83"
F:
7.1mm / 0.28"
øD:
4.1mm / 0.16"
ød2:
5.3mm / 0.21"
Wire Size Range for Stranded Wire (mm²):
0.30-1.65
Material (Connector Contact):
Oxygen free copper strip/tube (electro-tin-plating)
Standards:
UL, CSA, JIS
RoHS:
RoHS 10
H:
10.0mm / 0.39"
Color:
Red
Rated Voltage:
600V
Rated Temperature:
-40°F to +257°F (-40°C to +125°C)
