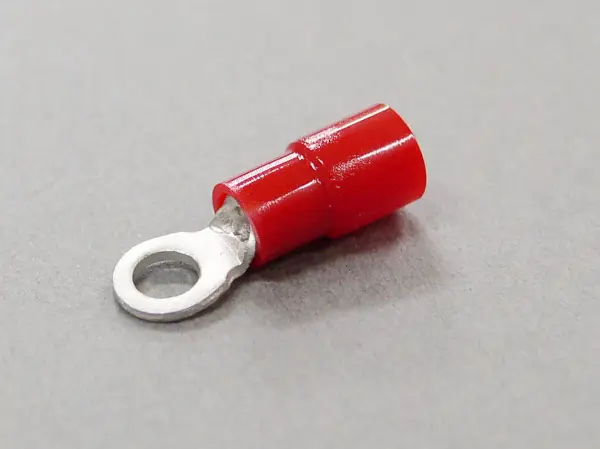

Eco-Friendly Polycarbonate Insulated Ring Terminals

(TMEX 1.25-3S-RED)

Package Qty: 1000

Quantity:

Technical Resources

Features

Excellent for insulation with rated voltage of 600V
Temperature range: -40°F to +257°F (-40°C to +125°C)
Its polycarbonate material will not generate poisonous halogenic gas and /or corrosive gas when combusted.
RoHS SOC 10 Compliant
2 standard colors available for each size: 1.24mm² (red & clear); 2mm² (blue & clear); 5.5mm² (yellow & clear)

Specifications

Stud: 4
AWG: 22-16
B: 5.7mm / 0.22"
L: 17.4mm / 0.69"
F: 4.55mm / 0.18"
øD: 4.1mm / 0.16"
ød2: 3.2mm / 0.13"
Wire Size Range for Stranded Wire (mm²): 0.30-1.65
Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
Standards: UL, C-UL
RoHS: RoHS 10
H: 10.0mm / 0.39"
Color: Red
Rated Voltage: 600V
Rated Temperature: -40°F to +257°F (-40°C to +125°C)
