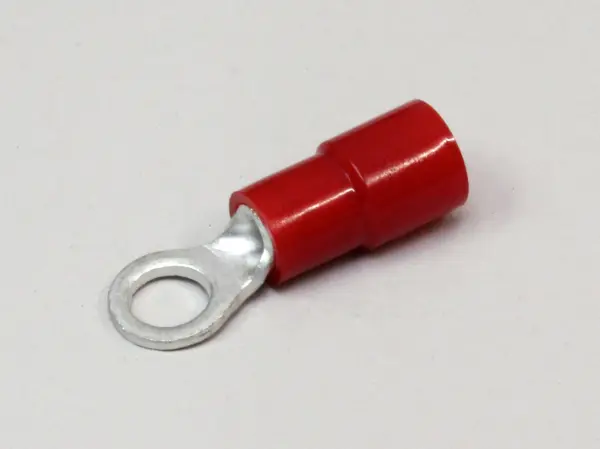

Eco-Friendly Polycarbonate Insulated Ring Terminals
(TMEX 1.25-3.5S-RED)
10.21
Package Qty: 1000
Quantity:
Add to Quote
Technical Resources
About TMEX
Features
Excellent for insulation with rated voltage of 600V
Temperature range:
-40°F to +257°F (-40°C to +125°C)
Its polycarbonate material will not generate poisonous halogenic gas and /or corrosive gas when combusted.
RoHS SOC 10 Compliant
2 standard colors available for each size:
1.24mm² (red & clear); 2mm² (blue & clear); 5.5mm² (yellow & clear)
Specifications
Stud:
6
AWG:
22-16
B:
5.7mm / 0.22"
L:
17.4mm / 0.69"
F:
4.55mm / 0.18"
øD:
4.1mm / 0.16"
ød2:
3.7mm / 0.15"
Wire Size Range for Stranded Wire (mm²):
0.30-1.65
Material (Connector Contact):
Oxygen free copper strip/tube (electro-tin-plating)
Standards:
UL, C-UL
RoHS:
RoHS 10
H:
10.0mm / 0.39"
Color:
Red
Rated Voltage:
600V
Rated Temperature:
-40°F to +257°F (-40°C to +125°C)
