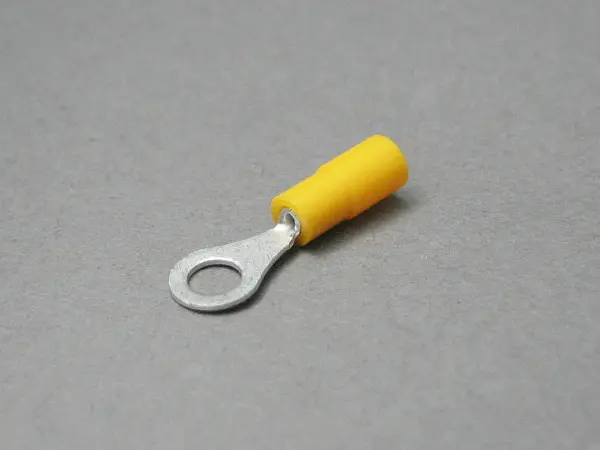

Eco-Friendly Polycarbonate Insulated Ring Terminals

(TMEX 0.3-3-YEL)
13.12
Package Qty: 1000
Quantity:

Technical Resources
Features
  • Excellent for insulation with rated voltage of 600V
  • Temperature range: -40°F to +257°F (-40°C to +125°C)
  • Its polycarbonate material will not generate poisonous halogenic gas and /or corrosive gas when combusted.
  • RoHS SOC 10 Compliant
  • 2 standard colors available for each size: 1.24mm² (red & clear); 2mm² (blue & clear); 5.5mm² (yellow & clear)
Specifications
  • Stud: 4
  • AWG: 24-20
  • B: 5.2mm / 0.2"
  • L: 17.5mm / 0.69"
  • F: 4.9mm / 0.19"
  • øD: 2.8mm / 0.11"
  • ød2: 3.2mm / 0.13"
  • Wire Size Range for Stranded Wire (mm²): 0.20-0.50
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plating)
  • Standards: UL, C-UL
  • RoHS: RoHS 10
  • H: 10.0mm / 0.39"
  • Color: Yellow
  • Rated Voltage: 600V
  • Rated Temperature: -40°F to +257°F (-40°C to +125°C)
