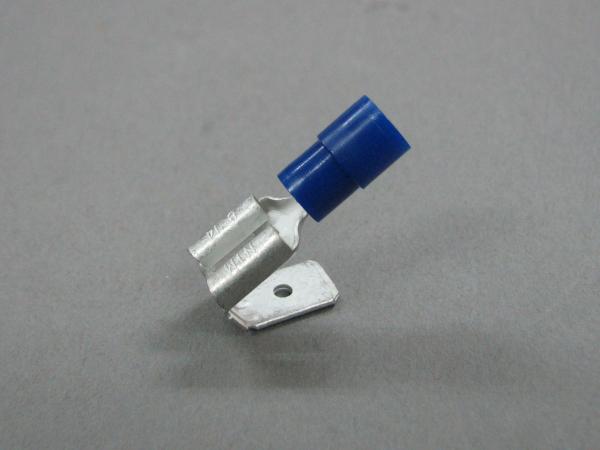

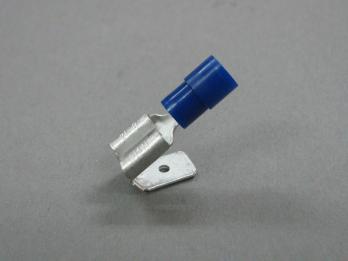

Insulated Piggyback Disconnect Terminals, Extra Copper Sleeve on Barrel

(TMEDV 630820-V-BLU)

19.15

Package Qty: 1000

Quantity:

Specifications

AWG: 14
B: 6.9mm / 0.27"
B1: 6.35mm / 0.25"
L: 22mm / 0.87"
ød: 2.55mm / 0.1"
øD: 4.5mm / 0.18"
H: 10mm / 0.39"
t: 0.8mm / 0.03"
Wire Size Range for Stranded Wire: 2.0mm²
Material (Terminal): Brass (electro-tin-plated)
Material (Sleeve): Oxygen free copper tube (electro-tin-plated)
Material (Insulator): Vinyl
Rated Voltage: 300V
Insulator Temperature: -40°F to 167°F / -40°C to 75°C
Flame Retardance: UL 94 V-0
Standard Color: Blue
RoHS: RoHS 10
Applicable Hand Tools: NH 12, NH 32
Appicable Crimpint Machines: NA 10, NA 3
Applicable Applicator: N10AP-TM
Applicable Dies: N10 12, N3 12
