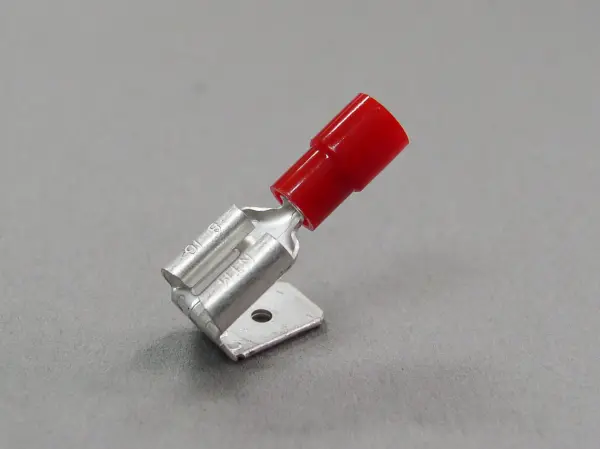

Insulated Piggyback Disconnect Terminals, Extra Copper Sleeve on Barrel

(TMEDV 630809-V-RED)

21.13

Package Qty: 1000

Quantity:

Specifications

AWG: 18-16

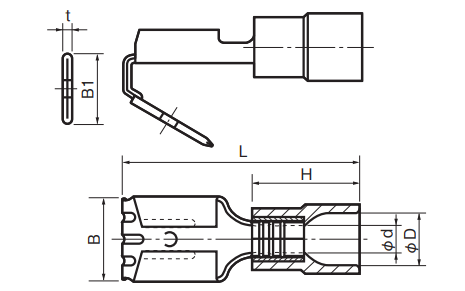

B: 6.9mm / 0.27"
B1: 6.35mm / 0.25"
L: 22mm / 0.87"
ød: 1.85mm / 0.07"
øD: 4.1mm / 0.16"
H: 10mm / 0.39"
t: 0.8mm / 0.03"
Wire Size Range for Stranded Wire: 0.75-1.25mm²
Material (Terminal): Brass (electro-tin-plated)
Material (Sleeve): Oxygen free copper tube (electro-tin-plated)
Material (Insulator): Vinyl
Rated Voltage: 300V
Insulator Temperature: -40°F to 167°F / -40°C to 75°C
Flame Retardance: UL 94 V-0
Standard Color: Red
RoHS: RoHS 10
Applicable Hand Tools: NH 11, NH 32
Appicable Crimpint Machines: NA 10, NA 3
Applicable Applicator: N10AP-TM
Applicable Dies: N10 11, N3 11
