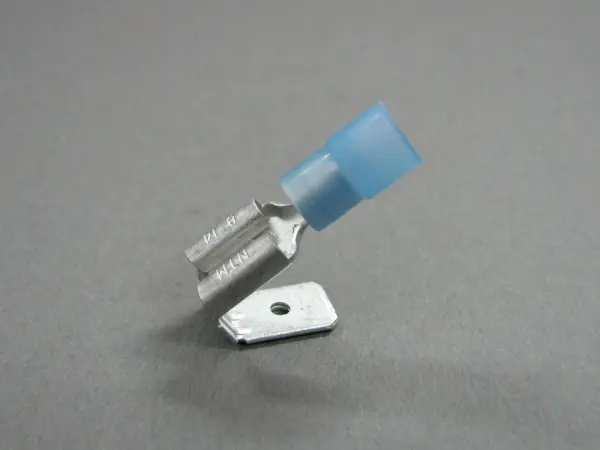

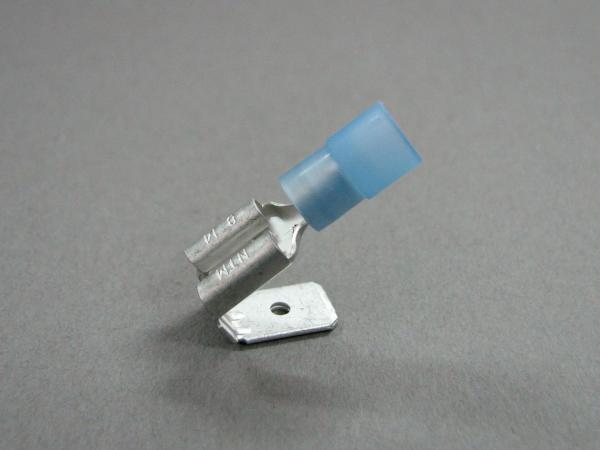

Insulated Piggyback Disconnect Terminals, Extra Copper Sleeve on Barrel

(TMEDN 630820-V-BCL)

0

Package Qty: 1000

Quantity:

Specifications

AWG: 14
B: 6.9mm / 0.27"
B1: 6.35mm / 0.25"
L: 22mm / 0.87"
ød: 2.54mm / 0.1"
øD: 4.5mm / 0.18"
H: 10mm / 0.39"
t: 0.8mm / 0.03"
Wire Size Range for Stranded Wire: 0.003in²
Material (Terminal): Brass
Material (Sleeve): Oxygen free copper tube (electro-tin-plated)
Material (Insulator): Nylon
Rated Voltage: 300V
Insulator Temperature: -40°F to 221°F / -40°C to 105°C
Flame Retardance: UL 94 V-2
Standard Color: Translucent Blue
Standards: UL, CSA
Applicable Hand Tools: NH 12
Appicable Crimpint Machines: NA 10
Applicable Applicator: N10AP-T
Applicable Dies: N10 12
