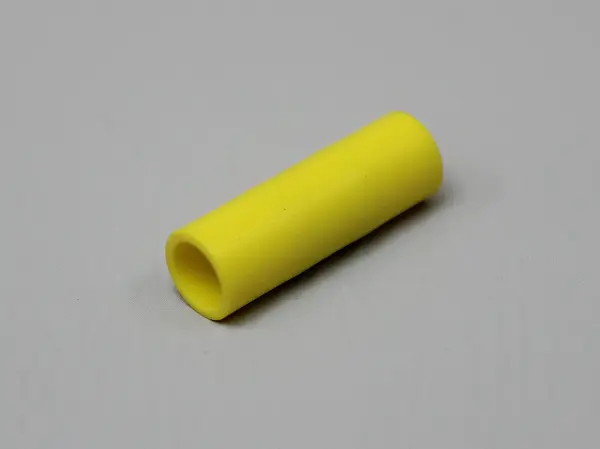

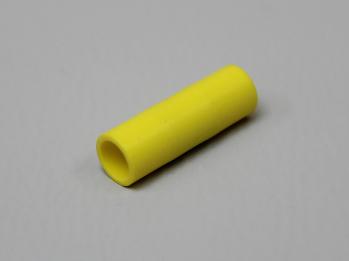

Insulated Parallel Connectors, Straight
(TGV P-5.5-YEL)
0
Package Qty: 1000
Quantity:
Add to Quote
Specifications
AWG:
12-10
ød:
3.5mm / 0.14"
øD:
5.4mm / 0.21"
L:
21.5mm / 0.85"
l:
8.5mm / 0.33"
Wire Size Range for Stranded Wire (mm²):
2.63-6.64
Material (Connector Contact):
Oxygen free copper strip/tube (electro-tin-plated)
Material (Insulator):
Vinyl
Rated Voltage:
300V
Insulator Temperature:
-40°F to 167°F / -40°C to 75°C
Applicable Hand Tools:
NH 13
Appicable Crimpint Machines:
NA 10, NA 3
Applicable Dies:
N10 13, N3 13
Standards:
CSA
RoHS:
RoHS 6
