Insulated Terminals and Sleeves
∕
Insulated Butt & Parallel Connectors
∕
Straight Insulated Butt Connectors
∕ Insulated Butt Connectors, Straight

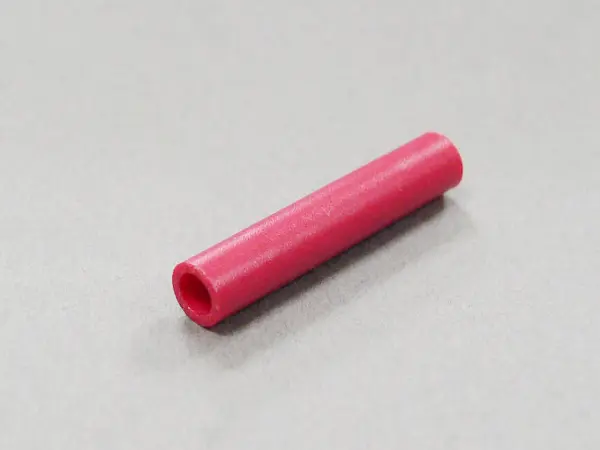

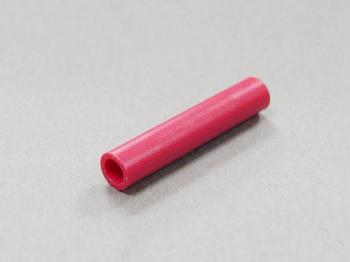

Insulated Butt Connectors, Straight
(TGV B-1.25-RED)
0
Package Qty: 1000
Quantity:
Add to Quote
Specifications
AWG:
22-16

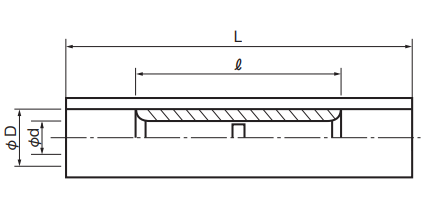

ød:
1.8mm / 0.07"
øD:
3.2mm / 0.13"
L:
25.5mm / 1"
l:
15mm / 0.59"
Wire Size Range for Stranded Wire (mm²):
0.30-1.65
Material (Connector Contact):
Oxygen free copper strip/tube (electro-tin-plated)
Material (Insulator):
Vinyl
Rated Voltage:
300V
Insulator Temperature:
-40°F to 167°F / -40°C to 75°C
Applicable Hand Tools:
NH 11, NH 32
Appicable Crimpint Machines:
NA 10, NA 3
Applicable Dies:
N10 11, N3 11
Standards:
CSA
RoHS:
RoHS 6
