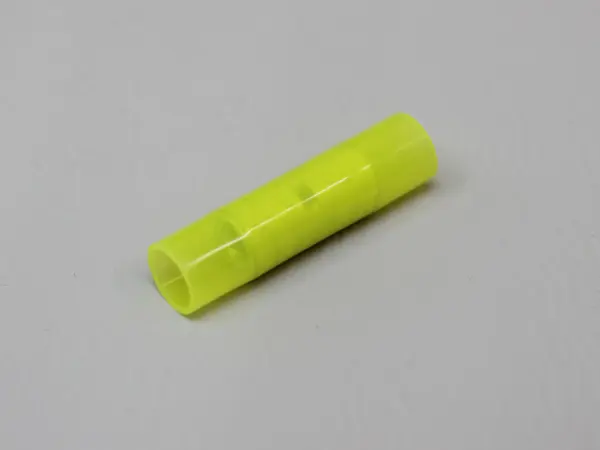

Insulated Butt Connectors, Straight

(TGN B-5.5)
0
Package Qty: 500
Quantity:

Specifications
  • AWG: 12-10
  • ød: 3.5mm / 0.14"
  • øD: 5.4mm / 0.21"
  • L: 27.5mm / 1.08"
  • l: 15mm / 0.59"
  • Wire Size Range for Stranded Wire (mm²): 2.63-6.64
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plated)
  • Material (Insulator): Nylon
  • Rated Voltage: 300V
  • Insulator Temperature: -40°F to 221°F / -40°C to 105°C
  • Applicable Hand Tools: NH 13
  • Appicable Crimpint Machines: NA 10, NA 3
  • Applicable Dies: N10 13, N3 13
  • Standards: CSA
  • RoHS: RoHS 10
