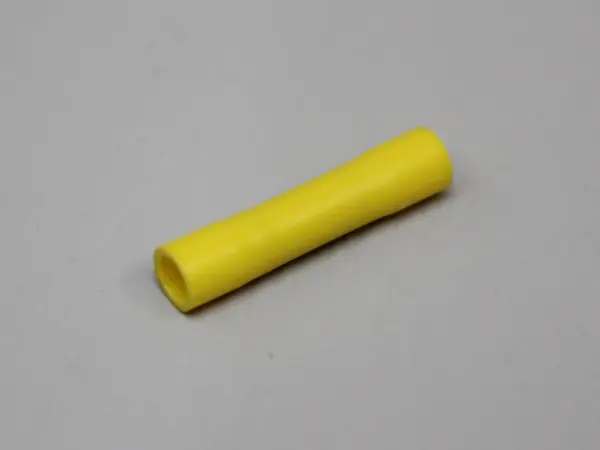

Insulated Parallel Connectors, Flared

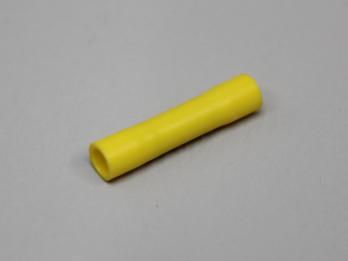

(TMV P-0.5-YEL)
0
Package Qty: 1000
Quantity:

Specifications
  • AWG: 22-18
  • ød: 1.4mm / 0.06"
  • øD: 2.9mm / 0.11"
  • L: 19mm / 0.75"
  • l: 8mm / 0.31"
  • Wire Size Range for Stranded Wire (mm²): 0.30-0.75
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plated)
  • Material (Insulator): Vinyl
  • Rated Voltage: 300V
  • Insulator Temperature: -40°F to 167°F / -40°C to 75°C
  • Applicable Hand Tools: NH 5, NH 32
  • Appicable Crimpint Machines: NA 10, NA 3
  • Applicable Dies: N10 10, N3 5
  • Standards: CSA
  • RoHS: RoHS 6
