Insulated Terminals and Sleeves
∕
Insulated Butt & Parallel Connectors
∕
Flared, Insulated Butt Connectors
∕ Insulated Butt Connectors, Flared

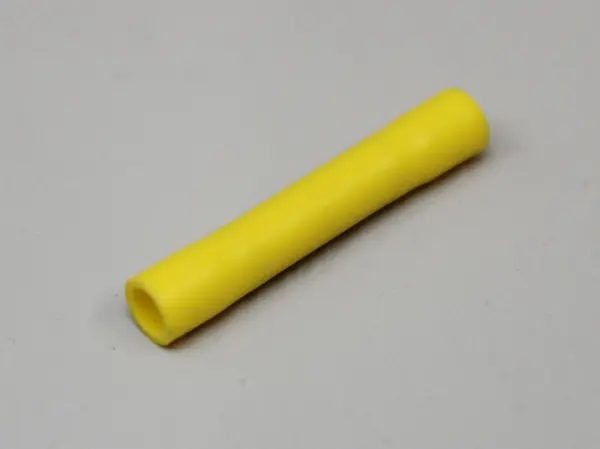

Insulated Butt Connectors, Flared
(TMV B-0.5-YEL)
22.6
Package Qty: 1000
Quantity:
Add to Quote
Specifications
AWG:
22-18
ød:
1.4mm / 0.06"
øD:
2.9mm / 0.11"
L:
24mm / 0.94"
l:
11.5mm / 0.45"
Wire Size Range for Stranded Wire (mm²):
0.30-0.75
Material (Connector Contact):
Oxygen free copper strip/tube (electro-tin-plated)
Material (Insulator):
Vinyl
Rated Voltage:
300V
Insulator Temperature:
-40°F to 167°F / -40°C to 75°C
Applicable Hand Tools:
NH 5, NH 32
Appicable Crimpint Machines:
NA 10, NA 3
Applicable Dies:
N10 10, N3 5
Standards:
CSA
RoHS:
RoHS 6
