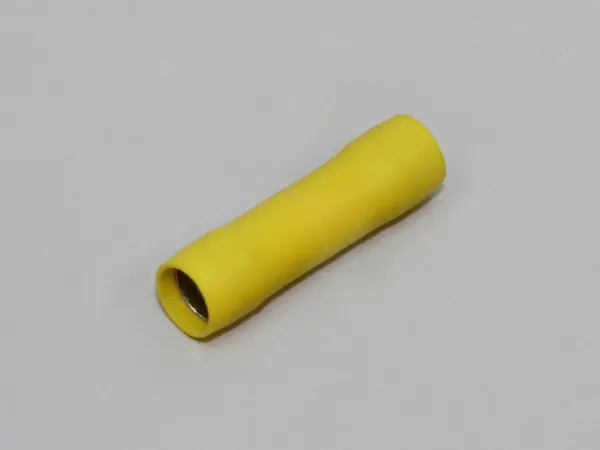

Insulated Butt Connectors, Flared, Extra Copper Sleeve

(TMDV B-5.5-YEL)
65.07
Package Qty: 500
Quantity:

Specifications
  • AWG: 12-10
  • ød: 3.5mm / 0.14"
  • øD: 6mm / 0.24"
  • L: 27.5mm / 1.08"
  • l: 15mm / 0.59"
  • Wire Size Range for Stranded Wire (mm²): 2.63-6.64
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plated)
  • Material (Insulator): Vinyl
  • Rated Voltage: 300V
  • Insulator Temperature: -40°F to 167°F / -40°C to 75°C
  • Applicable Hand Tools: NH 13
  • Appicable Crimpint Machines: -
  • Applicable Dies: -
  • Standards: CSA
  • RoHS: RoHS 6
