Insulated Bullet & Receptacle Connectors - PC Type

(PC 4009-F-RCL)
0
Package Qty: 1000
Quantity:

Specifications

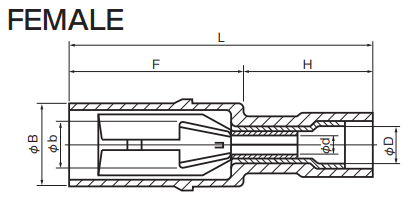

  • AWG: 18-16
  • øb: 3.9mm / 0.15"
  • øB: 6.9mm / 0.27"
  • ød: 1.8mm / 0.07"
  • øD: 3.2mm / 0.13"
  • L: 26.2mm / 1.03"
  • F: 15mm / 0.59"
  • H: 11.2mm / 0.44"
  • Wire Size Range for Stranded Wire: 0.75-1.25mm²
  • Material (Terminal): Brass (electro-tin-plated)
  • Material (Sleeve): Oxygen free copper tube (electro-tin-plated)
  • Material (Insulator): Nylon
  • Rated Voltage: 300V
  • Rated Current: 12-15A
  • Insulator Temperature: -40°F to 221°F / -40°C to 105°C
  • Flame Retardance: UL 94 V-2
  • Standard Color: Red
  • Applicable Hand Tools: NH 11, NH 32
  • Appicable Crimpint Machines: NA 10, NA 3
  • Applicable Dies: N10 11, N3 11
  • RoHS: RoHS 10
