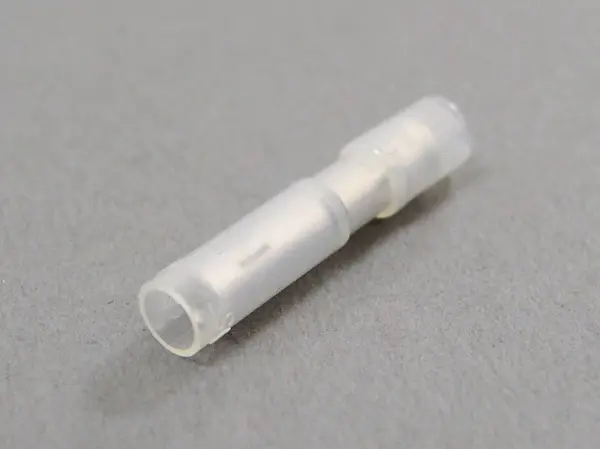

Insulated Bullet & Receptacle Connectors - PC Type

(PC 2005-F-CLR)
0
Package Qty: 1000
Quantity:

Specifications
  • AWG: 20-18
  • øb: 2mm / 0.08"
  • øB: 4.7mm / 0.19"
  • ød: 1.7mm / 0.07"
  • øD: 3.1mm / 0.12"
  • L: 24.5mm / 0.96"
  • F: 13mm / 0.51"
  • H: 11.5mm / 0.45"
  • Wire Size Range for Stranded Wire: 0.50-0.75mm²
  • Material (Terminal): Brass (electro-tin-plated)
  • Material (Sleeve): Oxygen free copper tube (electro-tin-plated)
  • Material (Insulator): Nylon
  • Rated Voltage: 300V
  • Rated Current: 10-12A
  • Insulator Temperature: -40°F to 221°F / -40°C to 105°C
  • Flame Retardance: UL 94 V-2
  • Standard Color: Translucent
  • Applicable Hand Tools: NH 5, NH 32
  • Appicable Crimpint Machines: NA 10, NA 3
  • Applicable Dies: N10 10, N3 15
  • RoHS: RoHS 10
