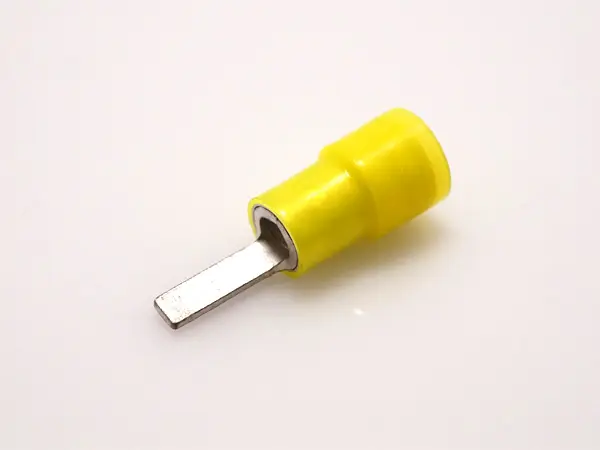

Insulated Blade Terminals, Flared, Extra Copper Sleeve

(TMDEN BT-5.5-10-YCL)
0
Package Qty: 1
Quantity:

Specifications
  • AWG: 12-10
  • B: 2.79mm / 0.11"
  • t: 0.94mm / 0.04"
  • L: 24mm / 0.94"
  • G: 10.01mm / 0.39"
  • H: 13.99mm / 0.55"
  • D: 6.8mm / 0.27"
  • Wire Size Range for Stranded Wire (in²): 0.004-0.010in²
  • Material (Connector Contact): Copper
  • Material (Insulator): Nylon
  • Rated Voltage: 300V
  • Insulator Temperature: -40°F to 221°F / -40°C to 105°C
  • Standards: UL, CSA
