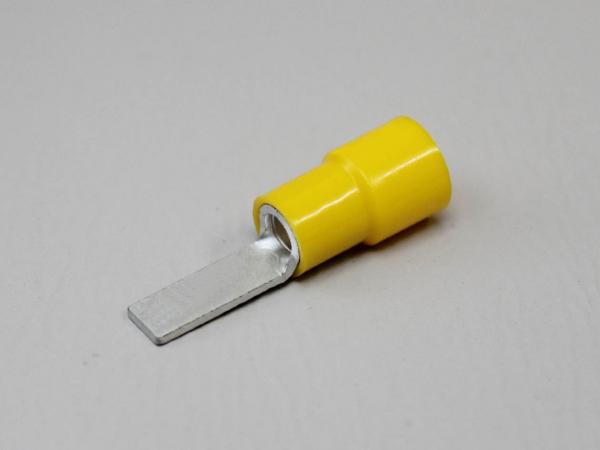

Eco-Friendly Polycarbonate Insulated Blade Terminals

(TMEX BT-5.5-18-YEL)
0
Package Qty: 50
Quantity:

Specifications
  • AWG: 12-10
  • B: 4.5mm / 0.18"
  • t: 0.95mm / 0.04"
  • L: 32mm / 1.26"
  • G: 18mm / 0.71"
  • H: 14mm / 0.55"
  • øD: 6.8mm / 0.27"
  • Wire Size Range for Stranded Wire (mm²): 2.63-6.64
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plated)
  • Material (Insulator): Polycarbonate
  • Rated Voltage: 600V
  • Insulator Temperature: -40°F to 257°F / -40°C to 125°C
  • Applicable Hand Tools: NH 13
  • Appicable Crimpint Machines: NA 10, NA 3
  • Applicable Dies: N10 13, N3 13
  • Standards: UL, C-UL
  • RoHS: RoHS 10
