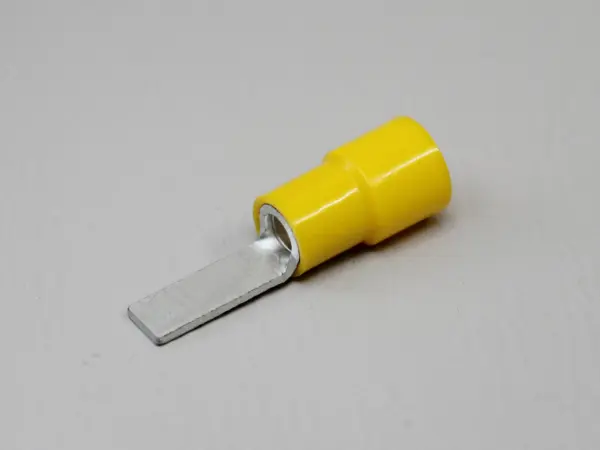

Eco-Friendly Polycarbonate Insulated Blade Terminals

(TMEX BT-5.5-13-YEL)

Package Qty: 50

Quantity:

Technical Resources

Features

2 standard colors available for each size: 1.25mm² (red & clear); 2mm² (blue & clear); 5.5mm² (yellow & clear)
Excellent for insulation with rated voltage of 600V
Its polycarbonate material will not generate poisonous halogenic gas and /or corrosive gas when combusted.
RoHS SOC 10 Compliant
Temperature range: -40°F to +257°F (-40°C to +125°C)

Specifications

AWG: 12-10
B: 4.5mm / 0.18"
t: 0.95mm / 0.04"
L: 27mm / 1.06"
G: 13mm / 0.51"
H: 14mm / 0.55"
øD: 6.8mm / 0.27"
Wire Size Range for Stranded Wire (mm²): 2.63-6.64
Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plated)
Material (Insulator): Polycarbonate
Rated Voltage: 600V
Insulator Temperature: -40°F to 257°F / -40°C to 125°C
Applicable Hand Tools: NH 13
Appicable Crimpint Machines: NA 10, NA 3
Applicable Dies: N10 13, N3 13
Standards: UL, C-UL
RoHS: RoHS 10
