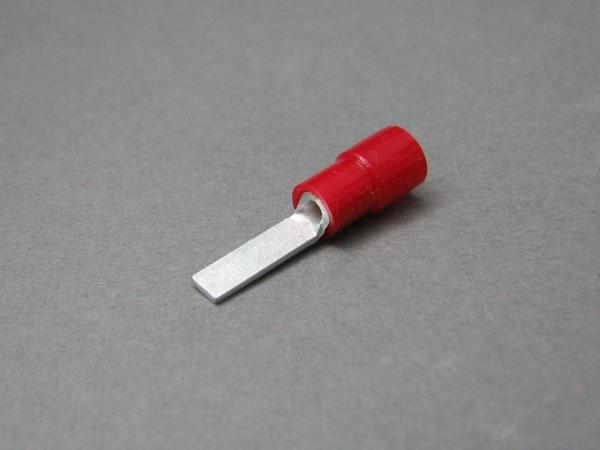

Eco-Friendly Polycarbonate Insulated Blade Terminals

(TMEX BT-1.25-14-RED)
0
Package Qty: 1000
Quantity:

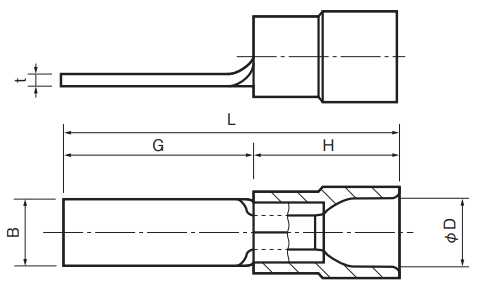

Specifications
  • AWG: 22-16
  • B: 3mm / 0.12"
  • t: 0.75mm / 0.03"
  • L: 24.6mm / 0.97"
  • G: 14.6mm / 0.57"
  • H: 10mm / 0.39"
  • øD: 4.1mm / 0.16"
  • Wire Size Range for Stranded Wire (mm²): 0.30-1.65
  • Material (Connector Contact): Oxygen free copper strip/tube (electro-tin-plated)
  • Material (Insulator): Polycarbonate
  • Rated Voltage: 600V
  • Insulator Temperature: -40°F to 257°F / -40°C to 125°C
  • Applicable Hand Tools: NH 11, NH 32
  • Appicable Crimpint Machines: NA 10, NA 3
  • Applicable Dies: N10 11, N3 11
  • Standards: UL, C-UL
  • RoHS: RoHS 10
