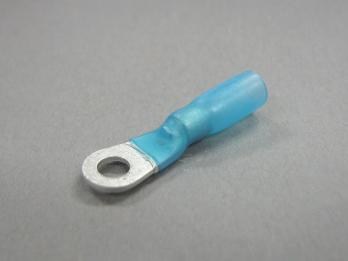

Heat-Shrink Ring Terminals

(SR 5.5-4NC)
0
Package Qty: 1000
Quantity:

Features
  • Application of heat is sufficient when the inner adhesive melts and slightly protrudes from the outer insulator.
  • Apply heat from the center of the butt moving towards the end while rotating the butt.
  • Apply heat of 248°F / 120°C on the insulator. Do not apply flame directly. Do not make excessive shrinkage, as such by an electric furnace of 284°F / 140°C, for over 5 minutes.
Specifications
  • AWG: 10
  • ød2: 4.3mm / 0.17"
  • B: 7mm / 0.28"
  • L: 33.5mm / 1.32"
  • F: 10mm / 0.39"
  • H: 21.5mm / 0.85"
  • øD: 6.4mm / 0.25"
  • ød: 3.4mm / 0.13"
  • Wire Size Range for Stranded Wire: 5.5mm²
  • Material (Insulator): Polyethylene, polyolefin adhesive
  • Rated Voltage: 600V
  • Rated Current: 48A (5.5mm²)
  • Maximum Insulation Temperature: 221F° / 105C°
  • RoHS: RoHS 10
  • Applicable Hand Tools: NH 82A
