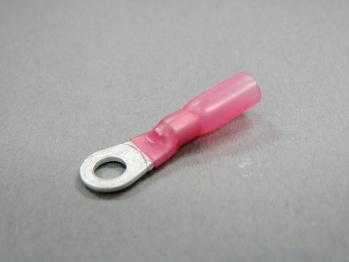

Heat-Shrink Ring Terminals

(SR 1.25-5C)
54.59
Package Qty: 1000
Quantity:

Features
  • Application of heat is sufficient when the inner adhesive melts and slightly protrudes from the outer insulator.
  • Apply heat from the center of the butt moving towards the end while rotating the butt.
  • Apply heat of 248°F / 120°C on the insulator. Do not apply flame directly. Do not make excessive shrinkage, as such by an electric furnace of 284°F / 140°C, for over 5 minutes.
Specifications
  • AWG: 18-16
  • ød2: 5.3mm / 0.21"
  • B: 8mm / 0.31"
  • L: 26.5mm / 1.04"
  • F: 10mm / 0.39"
  • H: 16.5mm / 0.65"
  • øD: 4.2mm / 0.17"
  • ød: 1.7mm / 0.07"
  • Wire Size Range for Stranded Wire: 0.75-1.25mm²
  • Material (Insulator): Polyethylene, polyolefin adhesive
  • Rated Voltage: 600V
  • Rated Current: 16A (0.75mm²), 19A (1.25mm²)
  • Maximum Insulation Temperature: 221F° / 105C°
  • RoHS: RoHS 10
  • Applicable Hand Tools: NH 82A
