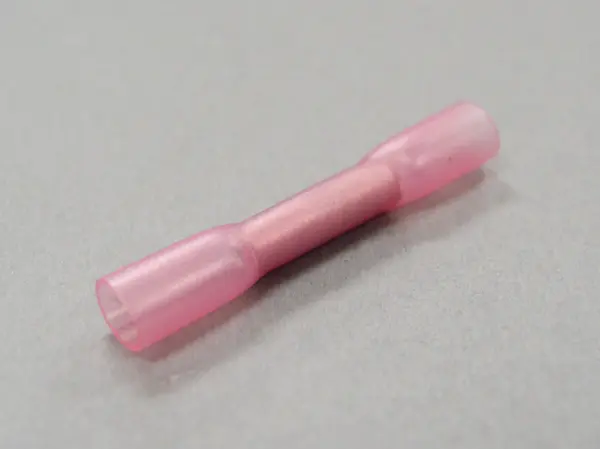

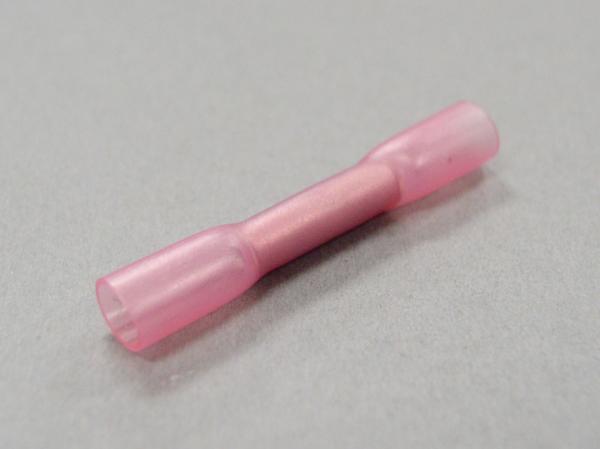

Heat-Shrink Butt Connectors
Package Qty: 1000
Add to Quote
Application of heat is sufficient when the inner adhesive melts and slightly protrudes from the outer insulator.
Apply heat from the center of the butt moving towards the end while rotating the butt.
Apply heat of 248°F / 120°C on the insulator. Do not apply flame directly. Do not make excessive shrinkage, as such by an electric furnace of 284°F / 140°C, for over 5 minutes.
1.8mm / 0.07"
4.2mm / 0.17"
37mm / 1.46"
15mm / 0.59"
Wire Size Range for Stranded Wire:
Polyethylene, polyolefin adhesive
12A (0.75mm²), 15A (1.25mm²)
Maximum Insulation Temperature:
221F° / 105C°
Applicable Hand Tools:
Appicable Crimpint Machines:
We Also Recommend
Hand Crimping Tool [NH 82A]
Pneumatic Crimping Tool [NA 3]
Die for Pneumatic Crimping Tool (NA 3) [N3 16]
