Half-Insulated Disconnect Terminals
∕
Vinyl Insulated Disconnect Terminals w/Copper Sleeve on Barrel Male
∕ Half-Insulated Disconnect Terminals, Extra Copper Sleeve on Barrel, Male

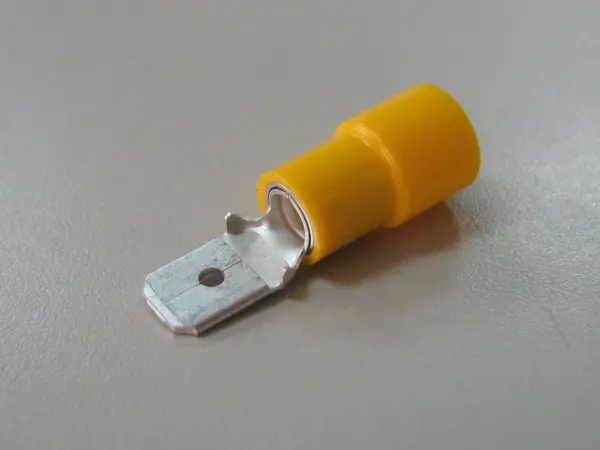

Half-Insulated Disconnect Terminals, Extra Copper Sleeve on Barrel, Male
(TMEDV 630855-M-YEL)
21.55
Package Qty: 500
Quantity:
Add to Quote

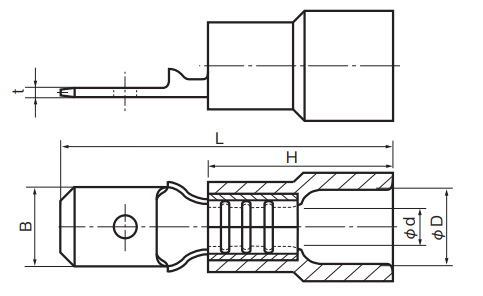

Specifications
AWG:
12-10
B:
6.35mm / 0.25"
L:
25mm / 0.98"
ød:
3.65mm / 0.14"
øD:
6.8mm / 0.27"
H:
14mm / 0.55"
Mating Tab Thickness:
-
Wire Size Range for Stranded Wire:
3.5-5.5mm²
Material (Terminal):
Brass (electro-tin-plated)
Material (Sleeve):
Oxygen free copper tube (electro-tin-plated)
Material (Insulator):
Vinyl
Rated Voltage:
300V
Insulator Temperature:
-40°F to 167°F / -40°C to 75°C
Flame Retardance:
UL 94 V-0
Standards:
UL/CSA
RoHS:
RoHS 10
Applicable Hand Tools:
NH 13
Appicable Crimpint Machines:
NA 10, NA 3
Applicable Applicator:
N10AP-TM
Applicable Dies:
N10 13, N3 13
Tab Size:
.250" x .032"
