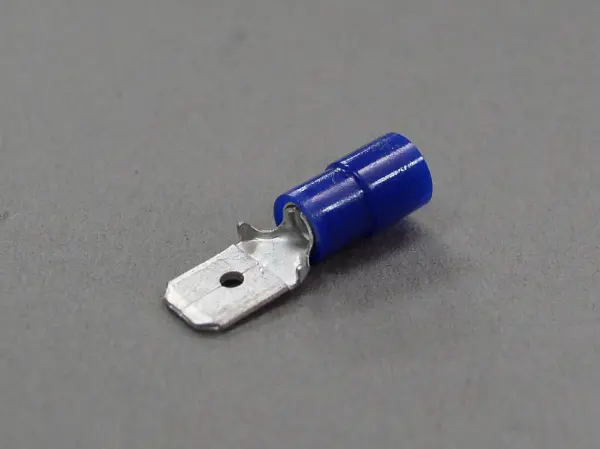

Half-Insulated Disconnect Terminals, Extra Copper Sleeve on Barrel, Male

(TMEDV 480520-M-BLU)
0
Package Qty: 1000
Quantity:

Specifications

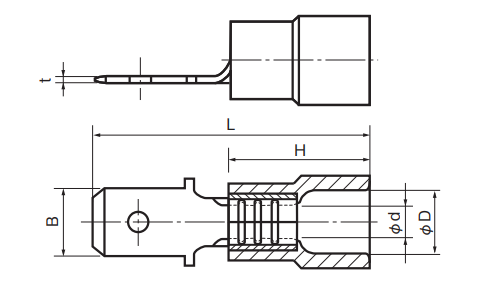

  • AWG: 14
  • B: 4.8mm / 0.19"
  • L: 19.5mm / 0.77"
  • ød: 2.2mm / 0.09"
  • øD: 4.5mm / 0.18"
  • H: 10mm / 0.39"
  • Mating Tab Thickness: -
  • Wire Size Range for Stranded Wire: 2.0mm²
  • Material (Terminal): Brass (electro-tin-plated)
  • Material (Sleeve): Oxygen free copper tube (electro-tin-plated)
  • Material (Insulator): Vinyl
  • Rated Voltage: 300V
  • Insulator Temperature: -40°F to 167°F / -40°C to 75°C
  • Flame Retardance: UL 94 V-0
  • Standards: UL/CSA
  • RoHS: RoHS 10
  • Applicable Hand Tools: NH 12, NH 32
  • Appicable Crimpint Machines: NA 10, NA 3
  • Applicable Applicator: N10AP-TM
  • Applicable Dies: N10 12, N3 12
  • Tab Size: .187" x .020"
