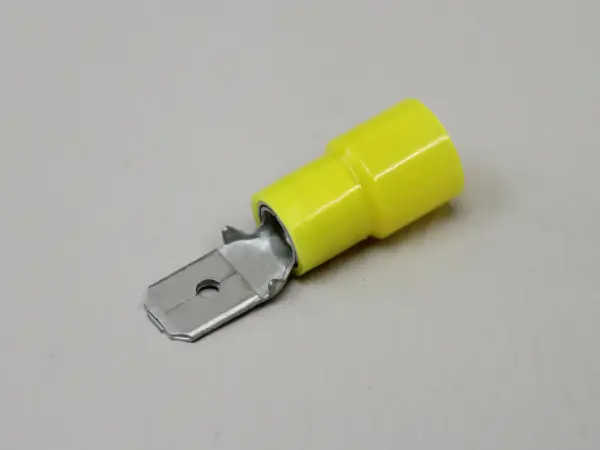

Half-Insulated Disconnect Terminals, Extra Copper Sleeve, Male

(TMDEN 630855-M-YCL)

27.41

Package Qty: 500

Quantity:

Specifications

AWG: 10
B: 6.35mm / 0.25"
L: 21mm / 0.83"
ød: 5.41mm / 0.21"
øD: 6.8mm / 0.27"
H: 13.99mm / 0.55"
Mating Tab Thickness: -
Wire Size Range for Stranded Wire: 0.009in²
Material (Terminal): Brass (electro-tin-plated)
Material (Sleeve): Oxygen free copper tube (electro-tin-plated)
Material (Insulator): Nylon
Standards: UL/CSA
Applicable Hand Tools: NH 13
Appicable Crimpint Machines: NA 10
Applicable Applicator: N10AP-T
Applicable Dies: N10 13
Tab Size: .250" x .032"
