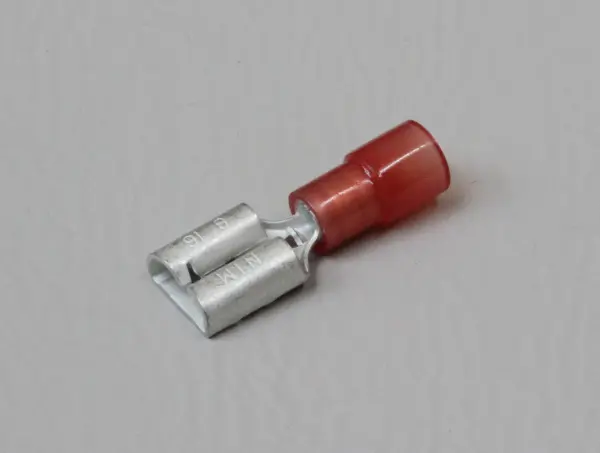

Half-Insulated Disconnect Terminals, Extra Copper Sleeve, Female

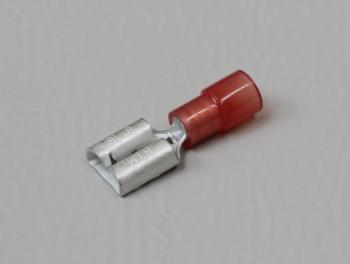

(TMDEN 630809-F-RCL)
22.39
Package Qty: 1000
Quantity:

Specifications
  • AWG: 18-16
  • B: 6.9mm / 0.27"
  • L: 21mm / 0.83"
  • ød: 3.2mm / 0.13"
  • øD: 4.08mm / 0.16"
  • H: 10mm / 0.39"
  • Mating Tab Thickness: 0.8mm / 0.03"
  • Wire Size Range for Stranded Wire: 0.001-0.002in²
  • Material (Terminal): Brass (electro-tin-plated)
  • Material (Sleeve): Oxygen free copper tube (electro-tin-plated)
  • Material (Insulator): Nylon
  • Standards: UL/CSA
  • Applicable Hand Tools: NH 11, NH 32
  • Appicable Crimpint Machines: NA 10
  • Applicable Applicator: N10AP-T
  • Applicable Dies: N10 11
  • Tab Size: .250" x .032"
