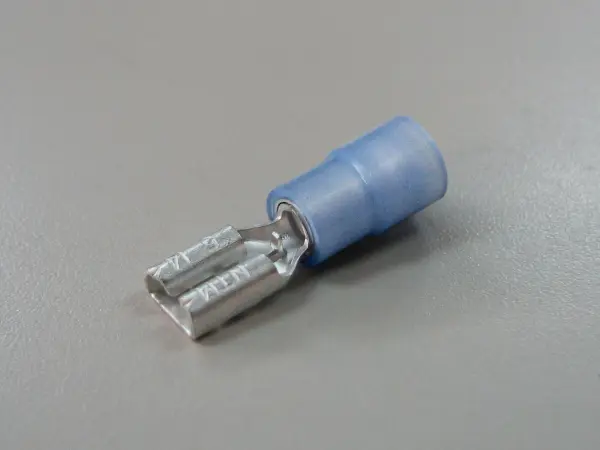

Half-Insulated Disconnect Terminals, Extra Copper Sleeve, Female

(TMDEN 480820-F-BCL)
23.65
Package Qty: 1000
Quantity:

Specifications
  • AWG: 14
  • B: 5mm / 0.2"
  • L: 19.5mm / 0.77"
  • ød: 3.91mm / 0.15"
  • øD: 4.49mm / 0.18"
  • H: 10mm / 0.39"
  • Mating Tab Thickness: 0.8mm / 0.03"
  • Wire Size Range for Stranded Wire: 0.003in²
  • Material (Terminal): Brass (electro-tin-plated)
  • Material (Sleeve): Oxygen free copper tube (electro-tin-plated)
  • Material (Insulator): Nylon
  • Standards: UL/CSA
  • Applicable Hand Tools: NH 12, NH 32
  • Appicable Crimpint Machines: NA 10
  • Applicable Applicator: N10AP-T
  • Applicable Dies: N10 12
