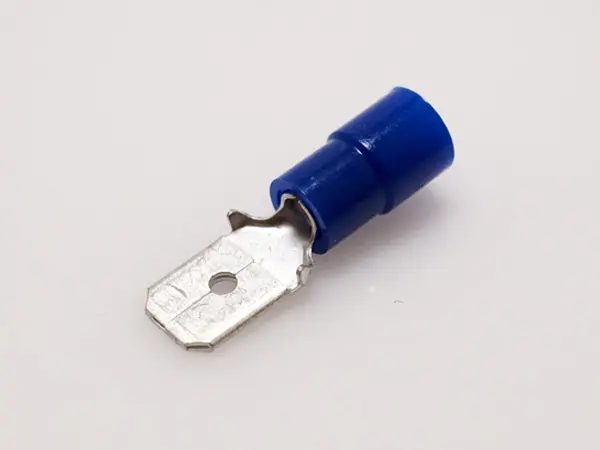

Half-Insulated Disconnect Terminals, Male

(TMEV 630820-M-BLU)
0
Package Qty: 1000
Quantity:

Specifications
  • AWG: 14
  • B: 6.35mm / 0.25"
  • L: 21mm / 0.83"
  • ød: 3.91mm / 0.15"
  • øD: 4.49mm / 0.18"
  • H: 10mm / 0.39"
  • Mating Tab Thickness: -
  • Wire Size Range for Stranded Wire: 0.003in²
  • Material (Terminal): Brass (electro-tin-plated)
  • Material (Insulator): Vinyl
  • Standards: UL/CSA
  • Applicable Hand Tools: NH 12, NH 32
  • Appicable Crimpint Machines: NA 10
  • Applicable Applicator: N10AP-T
  • Applicable Dies: N10 12
  • Tab Size: .250" x .032"
