Half-Insulated Disconnect Terminals
∕
Vinyl Insulated Disconnect Terminals Male
∕ Half-Insulated Disconnect Terminals, Male

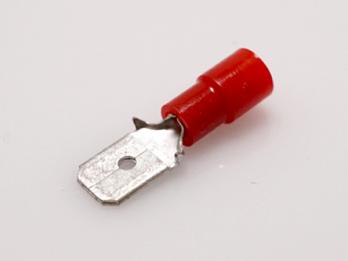

Half-Insulated Disconnect Terminals, Male
(TMEV 630809-M-RED)
0
Package Qty: 1000
Quantity:
Add to Quote
Specifications
AWG:
18-16
B:
6.35mm / 0.25"
L:
21mm / 0.83"
ød:
3.2mm / 0.13"
øD:
4.08mm / 0.16"
H:
10mm / 0.39"
Mating Tab Thickness:
-
Wire Size Range for Stranded Wire:
0.001-0.002in²
Material (Terminal):
Brass (electro-tin-plated)
Material (Insulator):
Vinyl
Standards:
UL/CSA
Applicable Hand Tools:
NH 11, NH 32
Appicable Crimpint Machines:
NA 10
Applicable Applicator:
N10AP-T
Applicable Dies:
N10 11
Tab Size:
.250" x .032"
