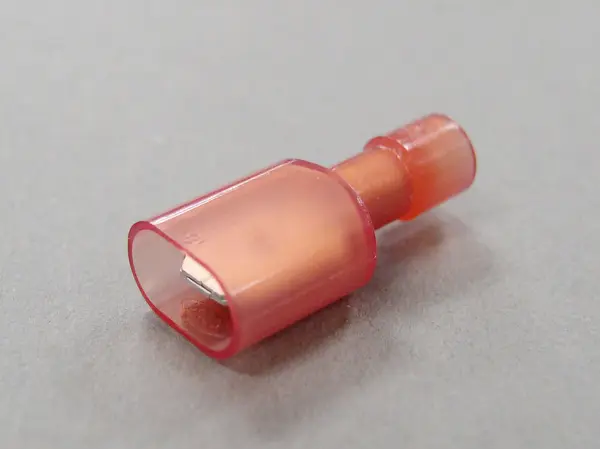

Fully Insulated Disconnect Terminals, Extra Copper Sleeve on Barrel, Male

(TMEDN 630809-MA-RCL)
0
Package Qty: 500
Quantity:

Specifications
  • AWG: 18-16
  • B: 6.3mm / 0.25"
  • W: 10.3mm / 0.41"
  • L: 22mm / 0.87"
  • ød: 1.8mm / 0.07"
  • øD: 4.1mm / 0.16"
  • G: 6.4mm / 0.25"
  • H: 10mm / 0.39"
  • t: 0.8mm / 0.03"
  • Wire Size Range for Stranded Wire: 0.75-1.25mm²
  • Standard Color: Red Translucent
  • Material (Terminal): Brass (electro-tin-plated)
  • Material (Sleeve): Oxygen free copper tube (electro-tin-plated)
  • Material (Insulator): Nylon
  • Rated Voltage: 300V
  • Insulator Temperature: -40°F to 221°F / -40°C to 105°C
  • Flame Retardance: UL 94 V-2
  • Standards: UL, CSA
  • RoHS: RoHS 10
  • Applicable Hand Tools: NH 11, NH 32
  • Appicable Crimpint Machines: NA 10, NA 3
  • Applicable Applicator: N10AP-TM
  • Applicable Dies: N10 11, N3 11
  • Tab Size: .250 x .032
