Insulated Terminals and Sleeves
∕
Fully Insulated Disconnect Terminals
∕
Fully Insulated Disconnect Terminals w/Extra Copper Sleeve on Barrel Female
∕ Fully Insulated Disconnect Terminals, Extra Copper Sleeve on Barrel, Female

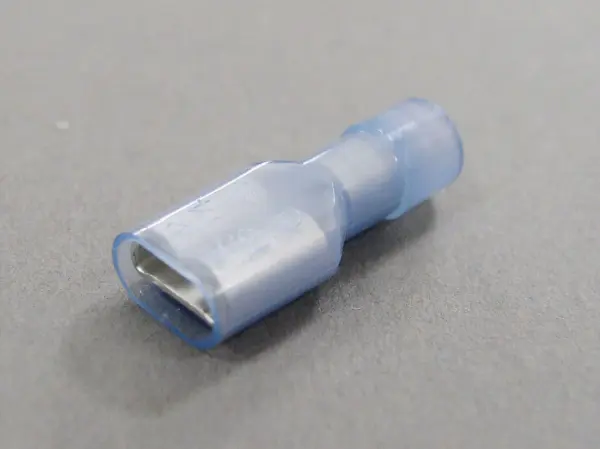

Fully Insulated Disconnect Terminals, Extra Copper Sleeve on Barrel, Female
(TMEDN 630820-FA-BCL)
0
Package Qty: 1000
Quantity:
Add to Quote

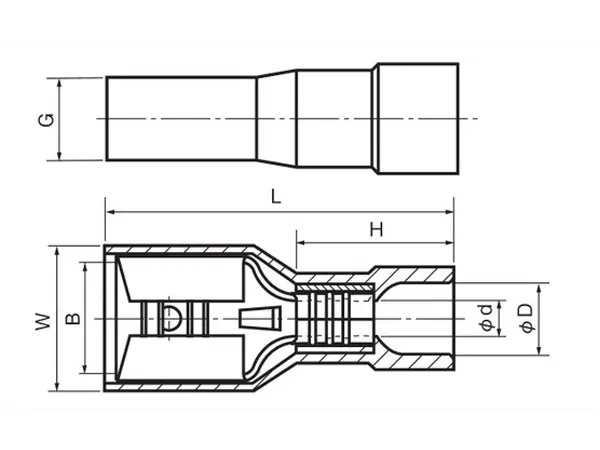

Specifications
AWG:
14
B:
6.8mm / 0.27"
W:
9mm / 0.35"
L:
21mm / 0.83"
ød:
2.4mm / 0.09"
øD:
4.5mm / 0.18"
G:
5.2mm / 0.2"
H:
9.5mm / 0.37"
Mating Tab Thickness:
0.8mm / 0.03"
Wire Size Range for Stranded Wire:
2.0mm²
Standard Color:
Blue Translucent
Material (Terminal):
Brass (electro-tin-plated)
Material (Sleeve):
Oxygen free copper tube (electro-tin-plated)
Material (Insulator):
Nylon
Rated Voltage:
300V
Insulator Temperature:
-40°F to 221°F / -40°C to 105°C
Flame Retardance:
UL 94 V-2
Standards:
UL, CSA
RoHS:
RoHS 10
Applicable Hand Tools:
NH 12, NH 32
Appicable Crimpint Machines:
NA 10, NA 3
Applicable Applicator:
N10AP-TM
Applicable Dies:
N10 12, N3 12
Tab Size:
.250 x .032
