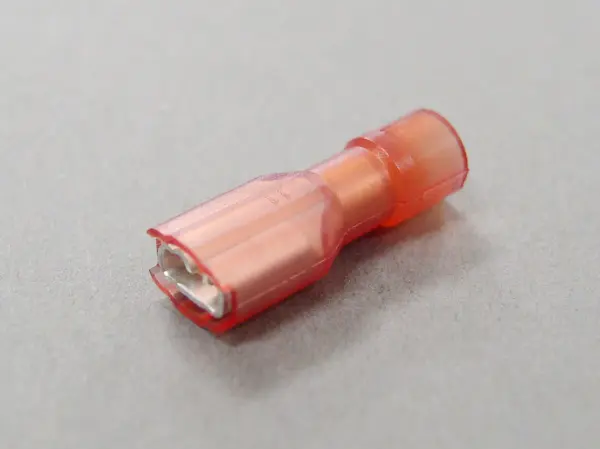

Fully Insulated Disconnect Terminals, Extra Copper Sleeve on Barrel, Female

(TMEDN 480809-FA-RCL)
0
Package Qty: 1000
Quantity:

Specifications

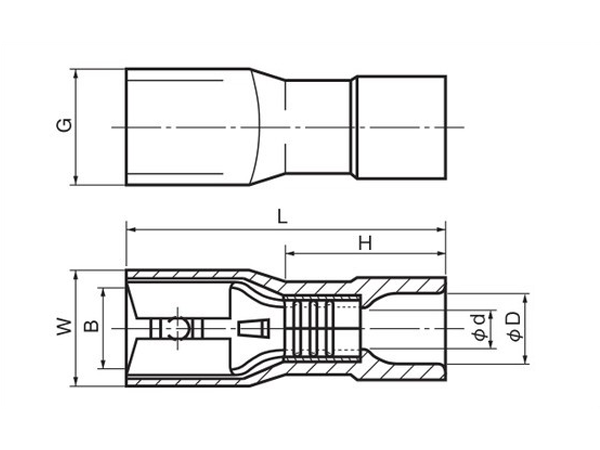

  • AWG: 18-16
  • B: 5mm / 0.2"
  • W: 7.2mm / 0.28"
  • L: 19.5mm / 0.77"
  • ød: 1.8mm / 0.07"
  • øD: 4.1mm / 0.16"
  • G: 4.85mm / 0.19"
  • H: 9.8mm / 0.39"
  • Mating Tab Thickness: 0.8mm / 0.03"
  • Wire Size Range for Stranded Wire: 0.75-1.25mm²
  • Standard Color: Red Translucent
  • Material (Terminal): Brass (electro-tin-plated)
  • Material (Sleeve): Oxygen free copper tube (electro-tin-plated)
  • Material (Insulator): Nylon
  • Rated Voltage: 300V
  • Insulator Temperature: -40°F to 221°F / -40°C to 105°C
  • Flame Retardance: UL 94 V-2
  • Standards: UL, CSA
  • RoHS: RoHS 10
  • Applicable Hand Tools: NH 11, NH 32
  • Appicable Crimpint Machines: NA 10, NA 3
  • Applicable Applicator: N10AP-TM
  • Applicable Dies: N10 11, N3 11
