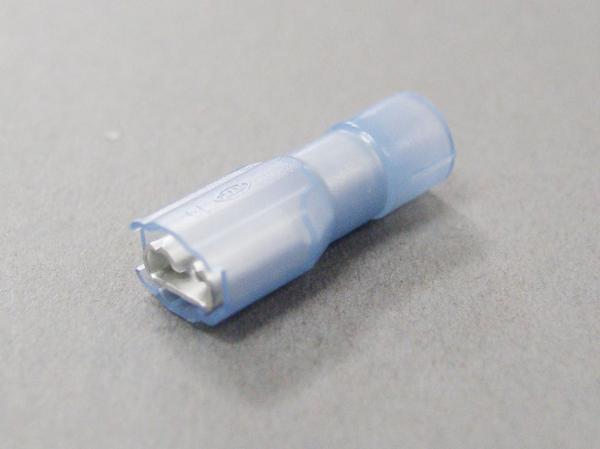

Fully Insulated Disconnect Terminals, Extra Copper Sleeve on Barrel, Female

(TMEDN 480520-FA-BCL)

0

Package Qty: 1000

Quantity:

Specifications

AWG: 14
B: 5mm / 0.2"
W: 7.2mm / 0.28"
L: 19.5mm / 0.77"
ød: 2.4mm / 0.09"
øD: 4.5mm / 0.18"
G: 5.6mm / 0.22"
H: 9.8mm / 0.39"
Mating Tab Thickness: 0.5mm / 0.02"
Wire Size Range for Stranded Wire: 2.0mm²
Standard Color: Blue Translucent
Material (Terminal): Brass (electro-tin-plated)
Material (Sleeve): Oxygen free copper tube (electro-tin-plated)
Material (Insulator): Nylon
Rated Voltage: 300V
Insulator Temperature: -40°F to 221°F / -40°C to 105°C
Flame Retardance: UL 94 V-2
Standards: UL, CSA
RoHS: RoHS 10
Applicable Hand Tools: NH 12, NH 32
Appicable Crimpint Machines: NA 10, NA 3
Applicable Applicator: N10AP-TM
Applicable Dies: N10 12, N3 12
Tab Size: .187 x .020
