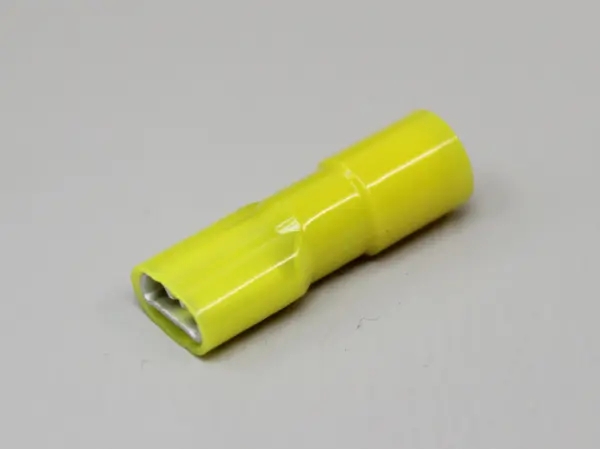

Fully Insulated Disconnect Terminals, Extra Copper Sleeve, Female

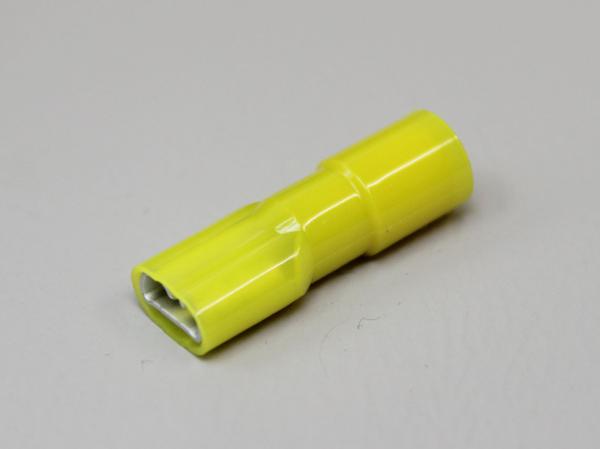

(TMDN 630855-FA-YCL)
0
Package Qty: 500
Quantity:

Specifications

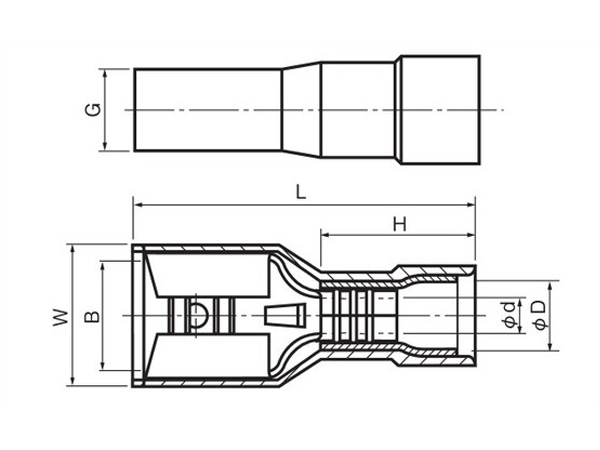

  • AWG: 10
  • B: 6.8mm / 0.27"
  • W: 9.2mm / 0.36"
  • L: 26mm / 1.02"
  • ød: 3.5mm / 0.14"
  • øD: 5.4mm / 0.21"
  • G: 5.8mm / 0.23"
  • H: 15mm / 0.59"
  • Mating Tab Thickness: 0.8mm / 0.03"
  • Wire Size Range for Stranded Wire: 2.0mm²
  • Standard Color: Yellow Translucent
  • Material (Terminal): Brass (electro-tin-plated)
  • Material (Sleeve): Oxygen free copper tube (electro-tin-plated)
  • Material (Insulator): Nylon
  • Rated Voltage: 300V
  • Insulator Temperature: -40°F to 221°F / -40°C to 105°C
  • Flame Retardance: UL 94 V-2
  • Standards: UL
  • RoHS: RoHS 10
  • Applicable Hand Tools: NH 13
  • Appicable Crimpint Machines: NA 10, NA 3
  • Applicable Applicator: N10AP-TM
  • Applicable Dies: N10 13, N3 13
  • Tab Size: .250 x .032
