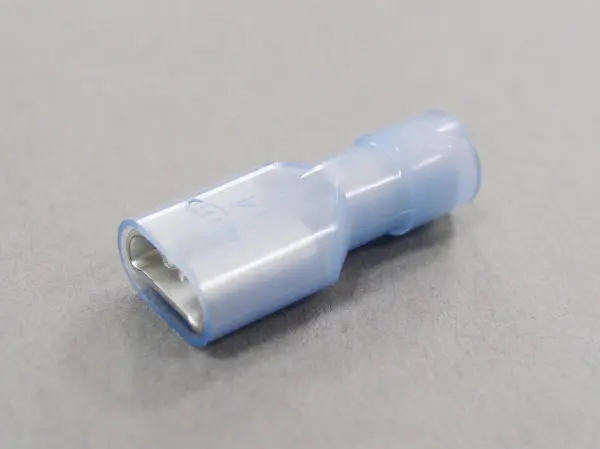

Fully Insulated Disconnect Terminals, Extra Copper Sleeve, Female

(TMDN 630820-FA-BCL)
0
Package Qty: 1000
Quantity:

Specifications
  • AWG: 14
  • B: 6.8mm / 0.27"
  • W: 9mm / 0.35"
  • L: 21mm / 0.83"
  • ød: 2.4mm / 0.09"
  • øD: 3.9mm / 0.15"
  • G: 5.2mm / 0.2"
  • H: 9.5mm / 0.37"
  • Mating Tab Thickness: 0.8mm / 0.03"
  • Wire Size Range for Stranded Wire: 2.0mm²
  • Standard Color: Blue Translucent
  • Material (Terminal): Brass (electro-tin-plated)
  • Material (Sleeve): Oxygen free copper tube (electro-tin-plated)
  • Material (Insulator): Nylon
  • Rated Voltage: 300V
  • Insulator Temperature: -40°F to 221°F / -40°C to 105°C
  • Flame Retardance: UL 94 V-2
  • Standards: UL
  • RoHS: RoHS 10
  • Applicable Hand Tools: NH 12, NH 32
  • Appicable Crimpint Machines: NA 10, NA 3
  • Applicable Applicator: N10AP-TM
  • Applicable Dies: N10 12, N3 12
  • Tab Size: .250 x .032
