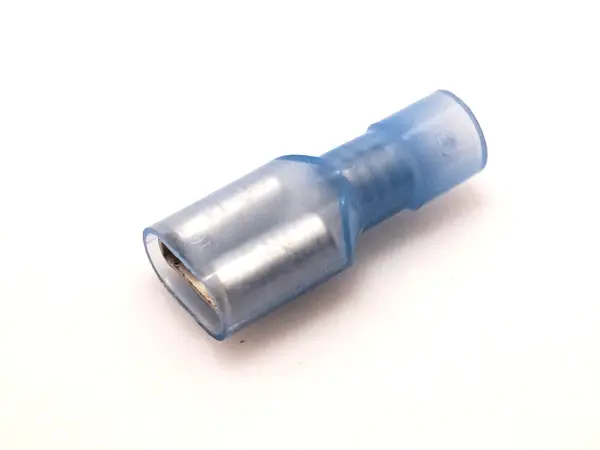

Fully Insulated Disconnect Terminals, Female
(TMEN 630820-FA-BCL)
0
Package Qty: 1000
Quantity:
Add to Quote
Specifications
AWG:
14
B:
6.8mm / 0.27"
W:
9mm / 0.35"
L:
9mm / 0.35"
øD:
3.9mm / 0.15"
H:
10mm / 0.39"
Mating Tab Thickness:
0.8mm / 0.032"
Wire Size Range for Stranded Wire:
0.003in²
Standard Color:
Translucent Blue
Material (Terminal):
Brass (electro-tin-plated)
Material (Insulator):
Nylon
Standards:
UL, CSA
Applicable Hand Tools:
NH 12
Appicable Crimpint Machines:
NA 10
Applicable Applicator:
N10AP-T
Applicable Dies:
N10 12
Tab Size:
.250 x .032
