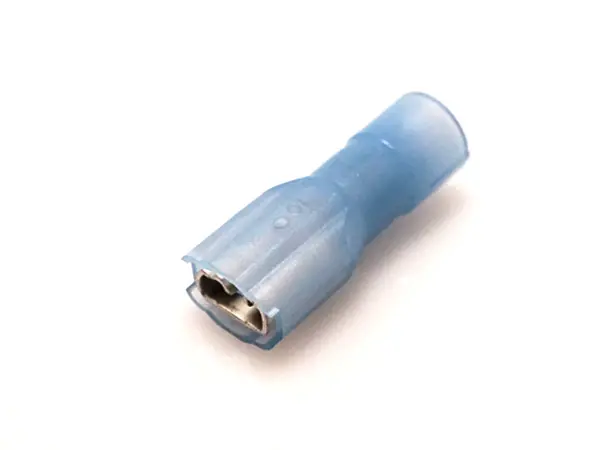

Fully Insulated Disconnect Terminals, Female

(TMEN 480820-FA-BCL)
0
Package Qty: 1000
Quantity:

Specifications
  • AWG: 14
  • B: 5mm / 0.2"
  • W: 7mm / 0.28"
  • L: 7mm / 0.28"
  • øD: 3.9mm / 0.15"
  • H: 10mm / 0.39"
  • Mating Tab Thickness: 0.8mm / 0.032"
  • Wire Size Range for Stranded Wire: 0.003in²
  • Standard Color: Translucent Blue
  • Material (Terminal): Brass (electro-tin-plated)
  • Material (Insulator): Nylon
  • Standards: UL, CSA
  • Applicable Hand Tools: NH 12
  • Appicable Crimpint Machines: NA 10
  • Applicable Applicator: N10AP-T
  • Applicable Dies: N10 12
  • Tab Size: .187 x .032
