Closed End Connectors - MP Type (Intermediate Connects)

(MP 2-4)
0
Package Qty: 1000
Quantity:

Specifications

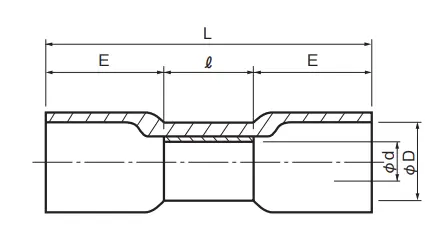

  • AWG: 16-14
  • ød: 2.8mm / 0.11"
  • øD: 6mm / 0.24"
  • L: 25mm / 0.98"
  • l: 7mm / 0.28"
  • E: 9mm / 0.35"
  • Wire Size Range for Stranded Wire: 1.00-3.00mm²
  • Material (Connector Contact): Oxygen free copper tube (electro-tin-plated)
  • Material (Insulator): Nylon
  • Rated Voltage: 300V
  • Insulator Temperature: -40°F to 221°F / -40°C to 105°C
  • Flame Retardance: UL 94 V-2 (V-0 available upon request)
  • Standard Color: Translucent
  • RoHS: RoHS 10
  • Applicable Hand Tools: NH 38
  • Appicable Crimpint Machines: NA 3
  • Applicable Applicator: N10AP-C
  • Applicable Dies: N3 14
