Home ∕ Insulated Terminals and Sleeves ∕ Closed End Connectors ∕ High Temp ∕ Closed End Connectors - High Temp

Closed End Connectors - High Temp

(SQ CE - 2HP)
0
Package Qty: 1000
Quantity:

Specifications

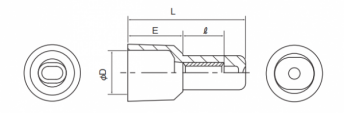

  • øD: 9.6mm / 0.38"
  • L: 20mm / 0.79"
  • l: 7mm / 0.28"
  • E: 9.5mm / 0.37"
  • Material (Connector Contact): Oxygen free copper tube (electro-tin-plated)
  • Material (Insulator): Cross linked polyethylene
  • Rated Voltage: 300V
  • Rated Current: 5A
  • Insulator Temperature: -40°F to 167°F / -40°C to 75°C
  • Flame Retardance: UL 94 V-2 (V-0 available upon request)
  • Standard Color: Red Translucent
  • RoHS: RoHS 10
  • Applicable Hand Tools: NH 40
