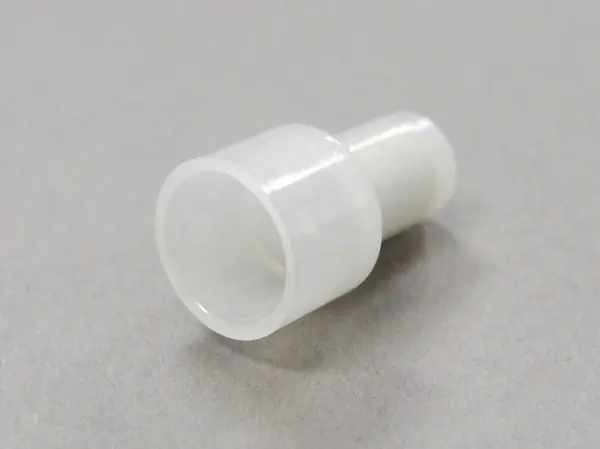

Closed End Connectors - EC Type

(EC 3-1)
0
Package Qty: 500
Quantity:

Specifications
  • AWG: 12-10

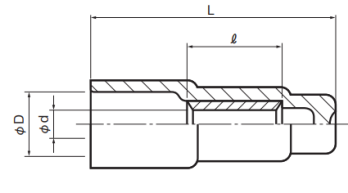

  • ød: 3.5mm / 0.14"
  • øD: 9.4mm / 0.37"
  • L: 19mm / 0.75"
  • l: 8.6mm / 0.34"
  • E: 8.1mm / 0.32"
  • Wire Size Range for Stranded Wire: 2.63-6.64mm²
  • Material (Connector Contact): Oxygen free copper tube (electro-tin-plated)
  • Material (Insulator): Nylon
  • Rated Voltage: 300V
  • Rated Current: 17A
  • Insulator Temperature: -40°F to 221°F / -40°C to 105°C
  • Flame Retardance: UL 94 V-2 (V-0 available upon request)
  • Standard Color: Milky white
  • Standards: UL, CSA
  • RoHS: RoHS 10
  • Applicable Hand Tools: NH 38
  • Appicable Crimpint Machines: NA 3
  • Applicable Applicator: N10AP-C
  • Applicable Dies: N3 14
