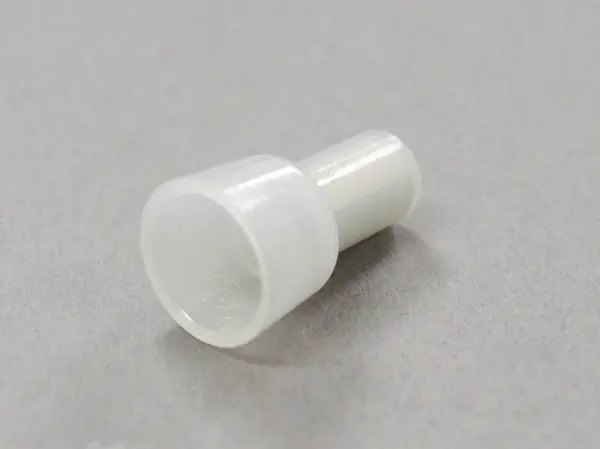

Closed End Connectors - EC Type

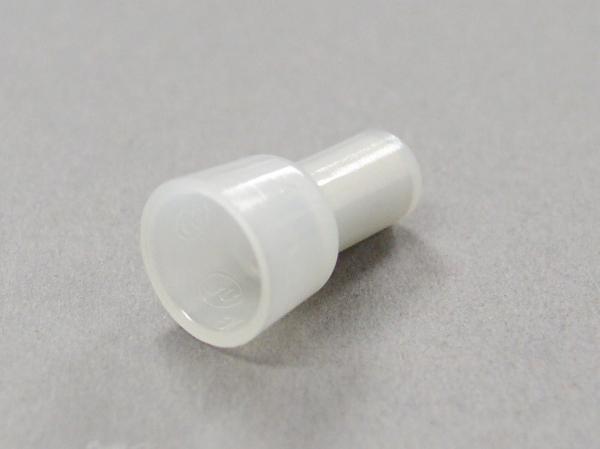

(EC 2-2)
0
Package Qty: 1000
Quantity:

Specifications
  • AWG: 16-14
  • ød: 2.2mm / 0.09"
  • øD: 7.9mm / 0.31"
  • L: 16.5mm / 0.65"
  • l: 8mm / 0.31"
  • E: 7mm / 0.28"
  • Wire Size Range for Stranded Wire: 1.00-2.63mm²
  • Material (Connector Contact): Oxygen free copper tube (electro-tin-plated)
  • Material (Insulator): Nylon
  • Rated Voltage: 300V
  • Rated Current: 12A
  • Insulator Temperature: -40°F to 221°F / -40°C to 105°C
  • Flame Retardance: UL 94 V-2 (V-0 available upon request)
  • Standard Color: Milky white
  • Standards: UL, CSA
  • RoHS: RoHS 10
  • Applicable Hand Tools: NH 38
  • Appicable Crimpint Machines: NA 3
  • Applicable Applicator: N10AP-C
  • Applicable Dies: N3 14, N3 34
