Insulated Terminals and Sleeves
∕
Closed-End Connectors
∕
EC Type
∕ Closed End Connectors - EC Type

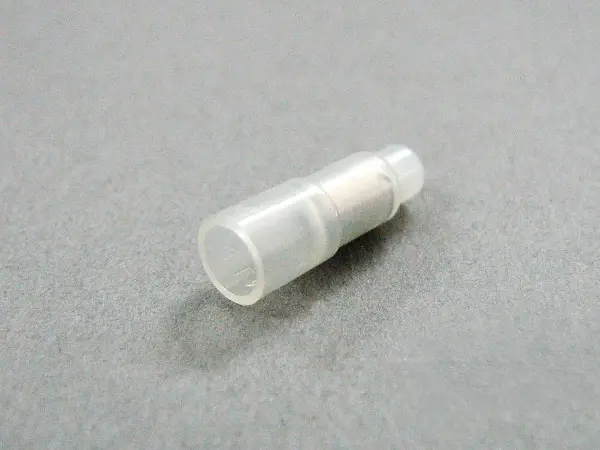

Closed End Connectors - EC Type
(EC 05-1)
126.4
Package Qty: 2000
Quantity:
Add to Quote
Specifications
AWG:
26-18

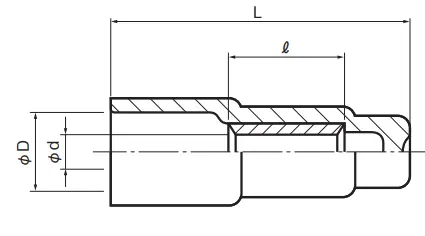

ød:
1.6mm / 0.06"
øD:
3.5mm / 0.14"
L:
13mm / 0.51"
l:
5mm / 0.2"
E:
5.1mm / 0.2"
Wire Size Range for Stranded Wire:
0.13-0.90mm²
Material (Connector Contact):
Oxygen free copper tube (electro-tin-plated)
Material (Insulator):
Nylon
Rated Voltage:
300V
Rated Current:
3A
Insulator Temperature:
-40°F to 221°F / -40°C to 105°C
Flame Retardance:
UL 94 V-2 (V-0 available upon request)
Standard Color:
Milky white
RoHS:
RoHS 10
Applicable Hand Tools:
NH 38
Appicable Crimpint Machines:
NA 3
Applicable Applicator:
N10AP-C
Applicable Dies:
N3 5
