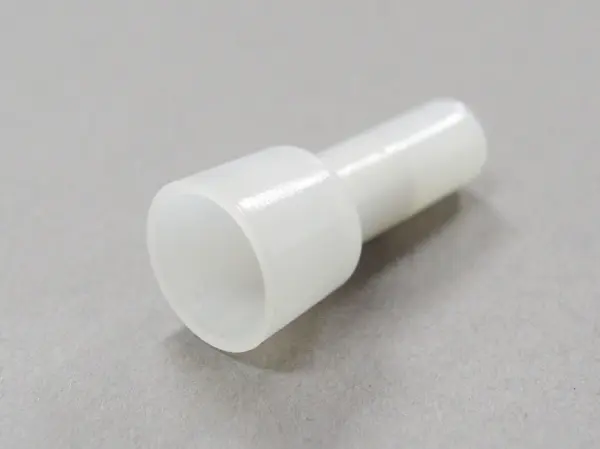

Closed End Connectors - CE Type

(CE 5 (100PCS))
17.37
Package Qty: 500
Quantity:

Specifications
  • AWG: 10-12
  • ød: 3.9mm / 0.15"
  • øD: 10.5mm / 0.41"
  • L: 28mm / 1.1"
  • l: 7.2mm / 0.28"
  • E: 10.8mm / 0.43"
  • Wire Size Range for Stranded Wire: 2.50-6.00mm²
  • Material (Connector Contact): Oxygen free copper tube (electro-tin-plated)
  • Material (Insulator): Nylon
  • Rated Voltage: 300V
  • Rated Current: 17A
  • Insulator Temperature: -40°F to 221°F / -40°C to 105°C
  • Flame Retardance: UL 94 V-2 (V-0 available upon request)
  • Standard Color: Milky white
  • Standards: UL, CSA, JIS
  • RoHS: RoHS 10
  • Applicable Hand Tools: NH 38
  • Appicable Crimpint Machines: NA 10, NA 3
  • Applicable Applicator: N10AP-C
  • Applicable Dies: N10 33, N3 14
