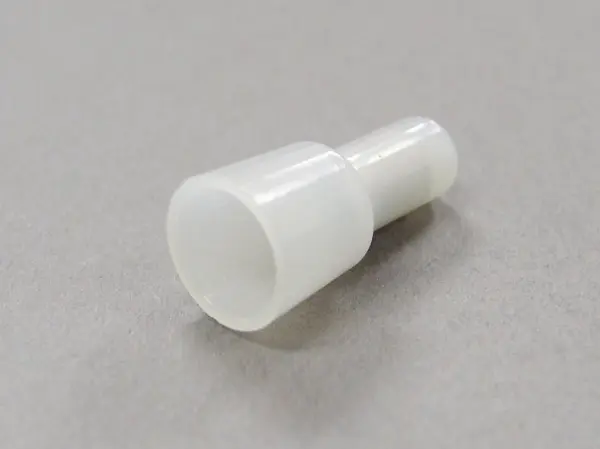

Closed End Connectors - CE Type

(CE 2 (100PCS))
11.43
Package Qty: 1000
Quantity:

Specifications
  • AWG: 16-14

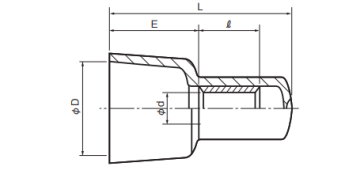

  • ød: 3mm / 0.12"
  • øD: 8mm / 0.31"
  • L: 21mm / 0.83"
  • l: 7.3mm / 0.29"
  • E: 9.6mm / 0.38"
  • Wire Size Range for Stranded Wire: 1.00-3.00mm²
  • Material (Connector Contact): Oxygen free copper tube (electro-tin-plated)
  • Material (Insulator): Nylon
  • Rated Voltage: 300V
  • Rated Current: 12A
  • Insulator Temperature: -40°F to 221°F / -40°C to 105°C
  • Flame Retardance: UL 94 V-2 (V-0 available upon request)
  • Standard Color: Milky white
  • Standards: UL, CSA, JIS
  • RoHS: RoHS 10
  • Applicable Hand Tools: NH 38
  • Appicable Crimpint Machines: NA 10, NA 3
  • Applicable Applicator: N10AP-C
  • Applicable Dies: N10 32, N3 14, N3 34
