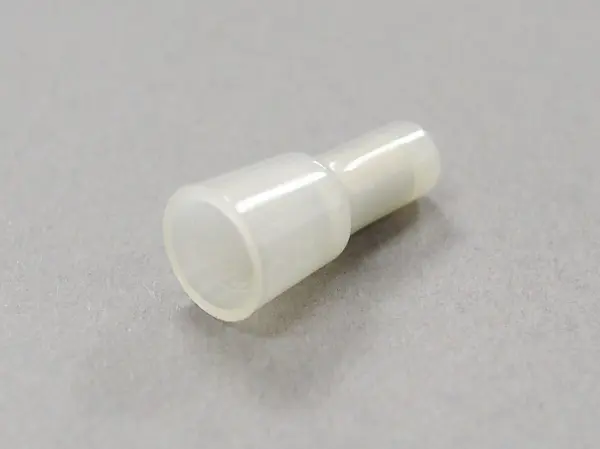

Closed End Connectors - CE Type

(CE 1 (100PCS))

10.53

Package Qty: 1000

Quantity:

Specifications

AWG: 22-16
ød: 2.4mm / 0.09"
øD: 6.5mm / 0.26"
L: 18mm / 0.71"
l: 6.2mm / 0.24"
E: 8.8mm / 0.35"
Wire Size Range for Stranded Wire: 0.50-1.75mm²
Material (Connector Contact): Oxygen free copper tube (electro-tin-plated)
Material (Insulator): Nylon
Rated Voltage: 300V
Rated Current: 7A
Insulator Temperature: -40°F to 221°F / -40°C to 105°C
Flame Retardance: UL 94 V-2 (V-0 available upon request)
Standard Color: Milky white
Standards: UL, CSA, JIS
RoHS: RoHS 10
Applicable Hand Tools: NH 38
Appicable Crimpint Machines: NA 10, NA 3
Applicable Applicator: N10AP-C
Applicable Dies: N10 31, N3 34
