Insulated Chain Terminals (ICT) - Male Disconnects

(ICTDV 480520-M)
0
Package Qty: 1500
Quantity:

Features
  • CONNECTED INSULATED TERMINAL - Each terminal has a fixed distance which enables it to crimp continuously.
  • EASY CRIMP - Chain terminal comes on a reel, terminal is fed automatically to the correct position in the dies. With an optional sensor, insert the wire for automatic crimp.
  • QUALITY CRIMP - ICT crimping gets a consistent quality crimp.
Specifications

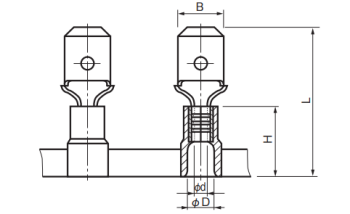

  • AWG: 16-14
  • B: 4.8mm / 0.19"
  • L: 19.5mm / 0.77"
  • ød: 2.3mm / 0.09"
  • øD: 4.5mm / 0.18"
  • H: 10mm / 0.39"
  • Tab Thickness: 0.5mm / 0.02"
  • Wire Size Range for Stranded Wire (mm²): 1.04-2.63
  • Material (Connector Contact): Brass (electro-tin-plated)
  • Material (Insulator): Vinyl
  • Rated Voltage: 300V
  • Insulator Temperature: -40°F to 167°F / -40°C to 75°C
  • Standard Color: Blue
  • Applicable Applicator: NC 12A
  • Standards: UL, CSA
  • RoHS: RoHS 10
