Insulated Chain Terminals (ICT) - Female Disconnects
(ICTDV 280509-F)
0
Package Qty: 1500
Quantity:
Add to Quote
Features
CONNECTED INSULATED TERMINAL:
Each terminal has a fixed distance which enables it to crimp continuously.
EASY CRIMP:
Chain terminal comes on a reel, terminal is fed automatically to the correct position in the dies. With an optional sensor, insert the wire for automatic crimp.
QUALITY CRIMP:
ICT crimping gets a consistent quality crimp.

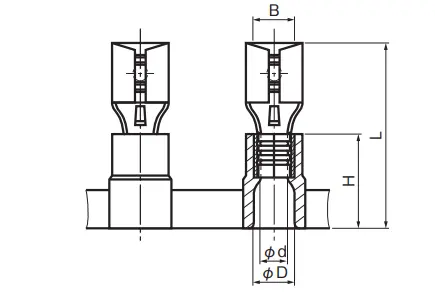

Specifications
B:
3.2mm / 0.13"
L:
19.5mm / 0.77"
ød:
1.8mm / 0.07"
øD:
4.1mm / 0.16"
H:
10mm / 0.39"
Mating Tab Thickness:
0.5mm / 0.02"
Wire Size Range for Stranded Wire (mm²):
0.3-0.75, 0.5-1.65
AWG:
22-18, 20-16
Material (Connector Contact):
Brass (electro-tin-plated)
Material (Insulator):
Vinyl
Rated Voltage:
300V
Insulator Temperature:
-40°F to 167°F / -40°C to 75°C
Applicable Applicator:
NC 11A2, NC 11A
Standard Color:
Red
Standards:
UL, CSA
RoHS:
RoHS 10
