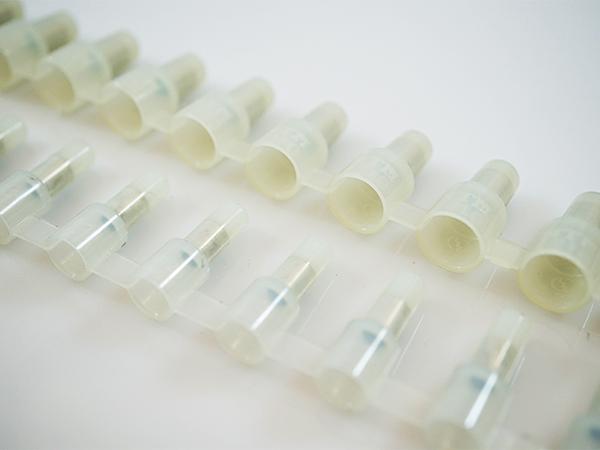

Insulated Chain Terminals (ICT) - Closed Ends

(IC CE-5)
153.18
Package Qty: 600
Quantity:

Features
  • CONNECTED INSULATED TERMINAL: Each terminal has a fixed distance which enables it to crimp continuously.
  • EASY CRIMP: Chain terminal comes on a reel, terminal is fed automatically to the correct position in the dies. With an optional sensor, insert the wire for automatic crimp.
  • QUALITY CRIMP: ICT crimping gets a consistent quality crimp.

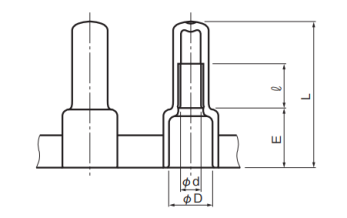

Specifications
  • ?d: 3.9mm / 0.15"
  • ?D: 9.3mm / 0.37"
  • L: 28mm / 1.1"
  • l: 7.2mm / 0.28"
  • E: 10.8mm / 0.43"
  • Wire Size Range for Stranded Wire (mm²): 2.5-6.0
  • AWG: 12-10
  • Material (Connector Contact): Oxygen free copper tube (electro-tin-plated)
  • Material (Insulator): Nylon
  • Rated Voltage: 300V
  • Insulator Temperature: -40°F to 221°F / -40°C to 105°C
  • Applicable Applicator: NC 16A
  • Standard Color: Milky white
  • Standards: UL, CSA, JIS
  • RoHS: RoHS 10
